Bluetooth Radar Water Level Gauge for Sewage Tank Custom Measuring Range

Name: Bluetooth Radar Water Level Gauge for Sewage Tank Custom Measuring Range
Brand: NUOYINGJIAYE
Price: 1 USD

Wholesale Bluetooth Radar Water Level Gauge for Sewage Tank Custom Measuring Range from china suppliers

Brand Name : NUOYINGJIAYE

Model Number : NYRD-701

Certification : CE

Place of Origin : Xi'an, Shaanxi,China

MOQ : 1 pcs

Price : Please Contact Me

Payment Terms : T/T

Supply Ability : 1000 pcs/ pre month

Delivery Time : 7-15 working days

Packaging Details : Carton, 60cm×30cm×30cm

Product model : NYRD701

Antenna material : 304

Echo sampling : 55 times /s

Measuring range : 6m

Power supply : 24VDC

Process temperature : -40~+130℃

Process pressure : -0.1~2.0MPa

Contact Now

Rs485 modbus radar type water level sensor transmitter

NYRD-901 Radar Water Level Meter

The NYRD901 Frequency Modulation wave FMCW radar product (also known as millimeter wave radar) has important applications in remote target detection, remote imaging, multispectral imaging, etc. In the environment of strong smoke and dust, because it uses a millimeter wave band with a higher frequency than the Ku band radar. It can detect targets smaller than the microwave radar and achieve more accurate positioning, with higher resolution and stronger confidentiality.

NYRD-901 Radar Water Level Meter Technical Parameters

Typical application	water, liquids
Measuring range	5m, 10m, 15m, 20m
Power Supply	24VDC(22V~30V)
Signal output	4...20mA/RS485/Modbus..
Ambient temperature	-20℃~+70℃
Process pressure	-0.1~1.0Mpa
Connection method	Thread
Protection Grade	IP67

Notes: The products can be customized according to customers requirement!

NYRD-901 Radar Water Level Meter Certificate

Bluetooth Radar Water Level Gauge for Sewage Tank Custom Measuring Range

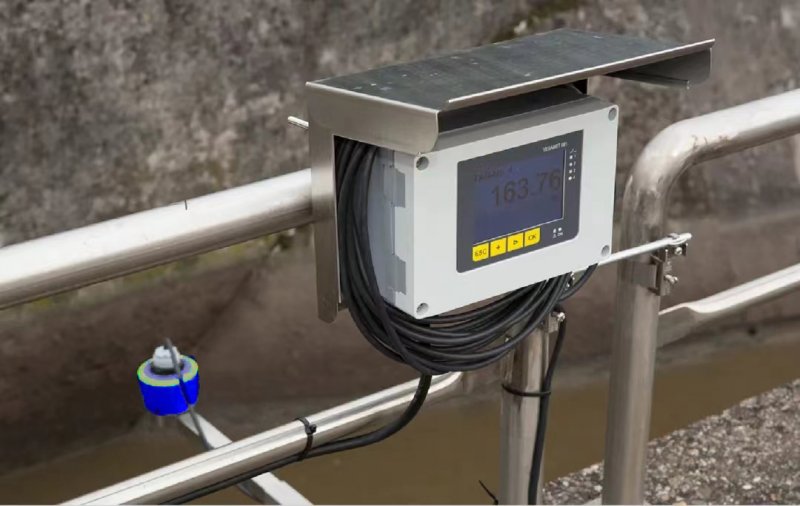

NYRD-901 Radar Water Level Meter Working Condition

Bluetooth Radar Water Level Gauge for Sewage Tank Custom Measuring Range
